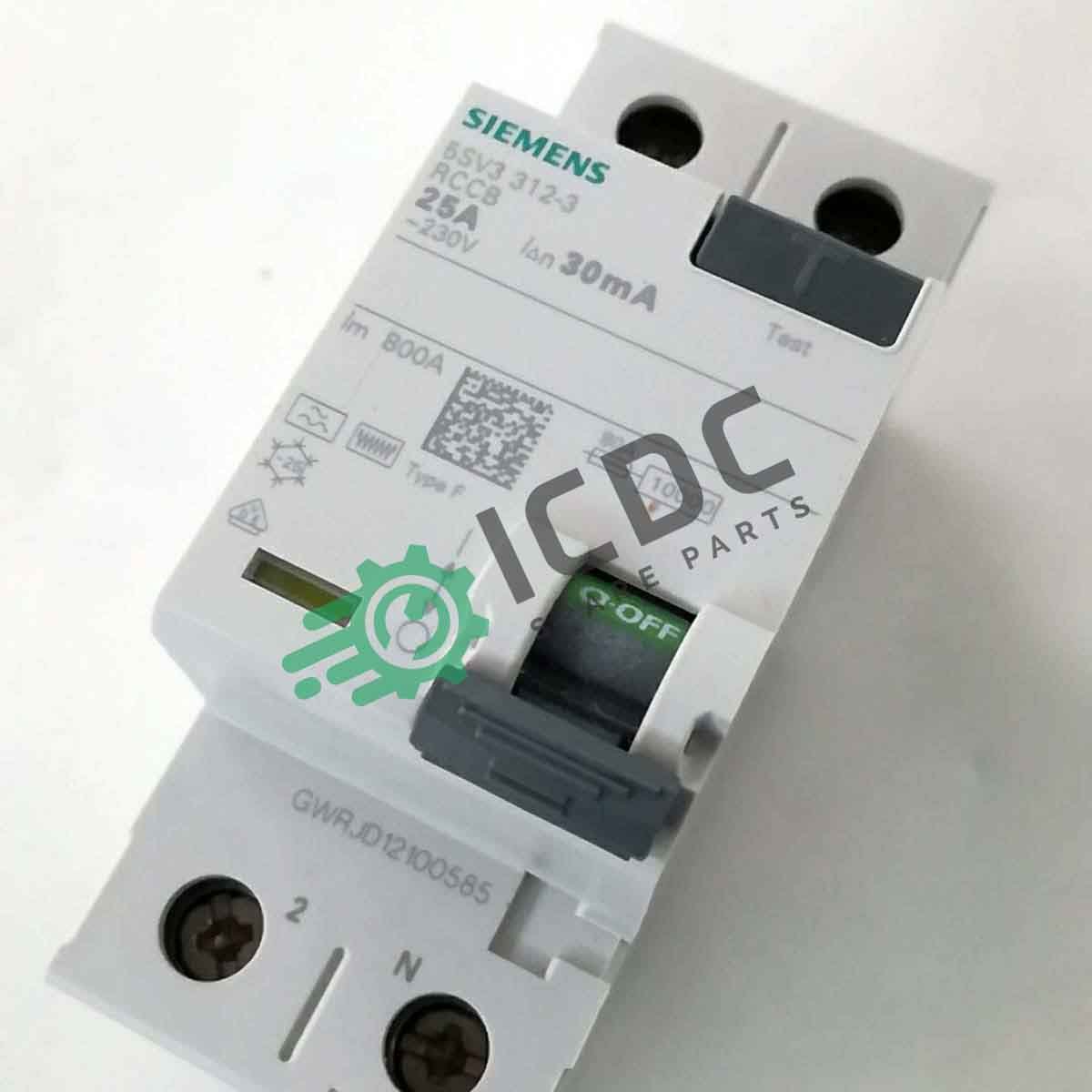

SIEMENS - 5SV3312-3 - Residual Current Operated Circuit Breaker Type F

SIEMENS – 5SV3312-3 – Breaker

Main Category: Electromechanical | Sub-Category: Circuit Breakers | Status: New Original Components
SIEMENS Part Number: 5SV3312-3 | ICDC Part Number: ICDC-001025

Description:

Residual current operated circuit breaker, 2-pole, type F, short-time delayed, In: 25 A, 30 mA, Un AC: 230 V

Content	1pc(s)
Dim	(W x H x D) 36 x 90 x 70 mm
Depth	70mm
Height	90mm
Width	36mm
Nominal current – rounded value	25A
Differential current rating	0.03A
Nominal current	25A
Nominal voltage	230V
Switch-off capacity	0.5kA
Number of pins	2
Mounting method	DIN rail
Built-in depth	70.0mm
Nominal rated current	25A
Nominal rated voltage	230V
Number of poles	2
Rated fault current	0.03A
Leakage current type	Other
Selective protection	No
Short-circuit breaking capacity (Icw)	10.0kA
Surge current capacity	3.0kA
Construction size (in accordance with DIN 43880)	1
Width in number of modular spacings	2
Short-time delayed tripping	Yes
Frequency	50 Hz
Degree of protection (IP)	IP20
Additional equipment possible	Yes
Product type	RCCB
