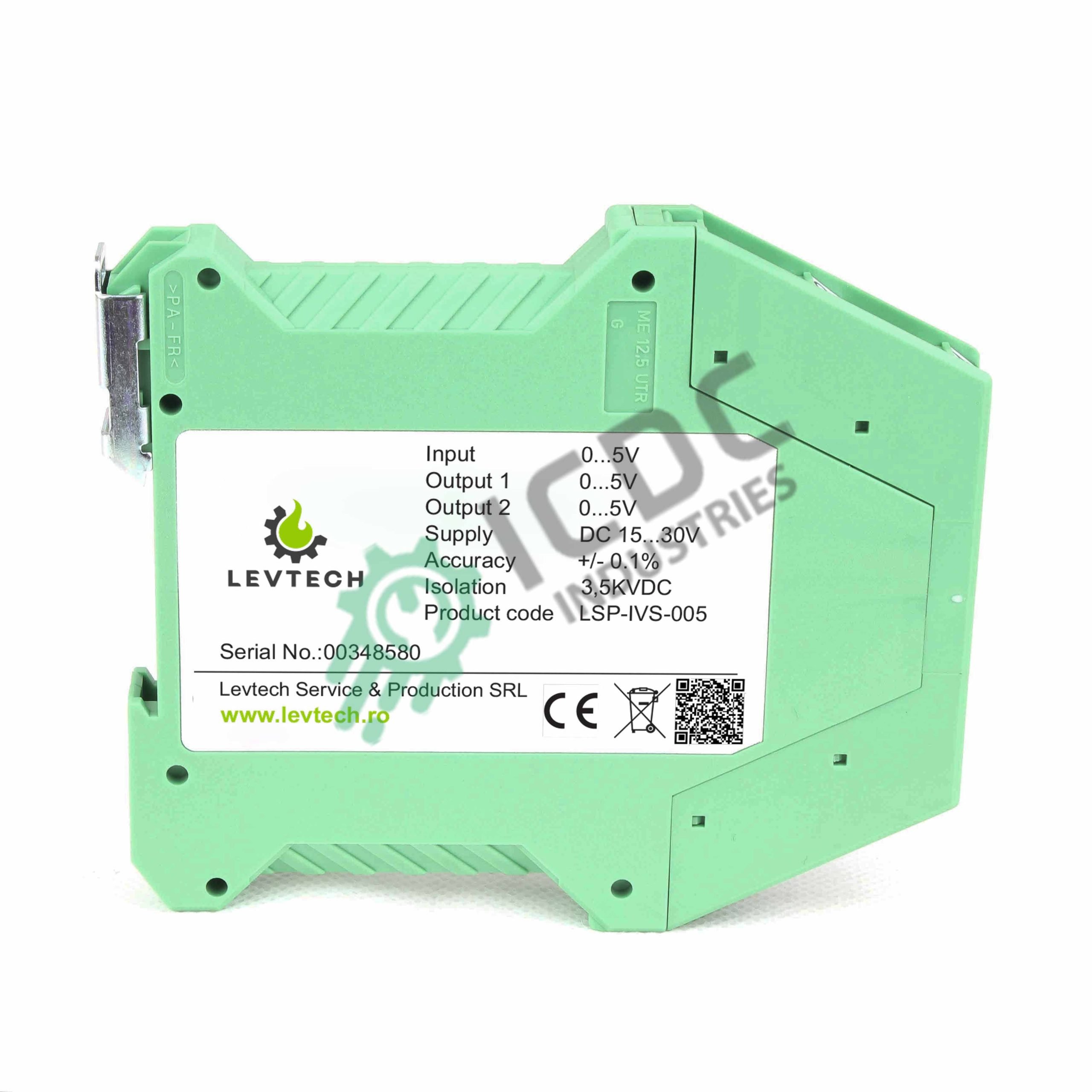

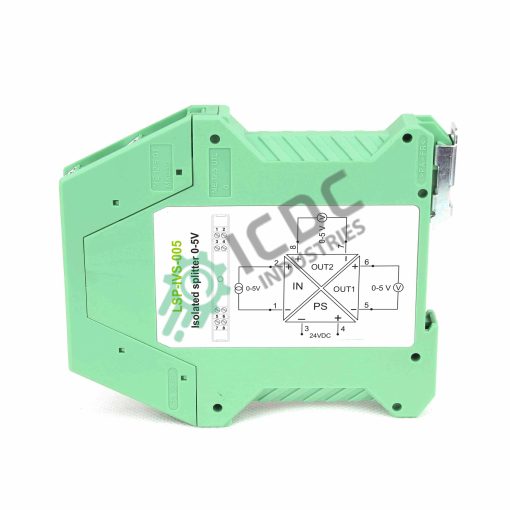

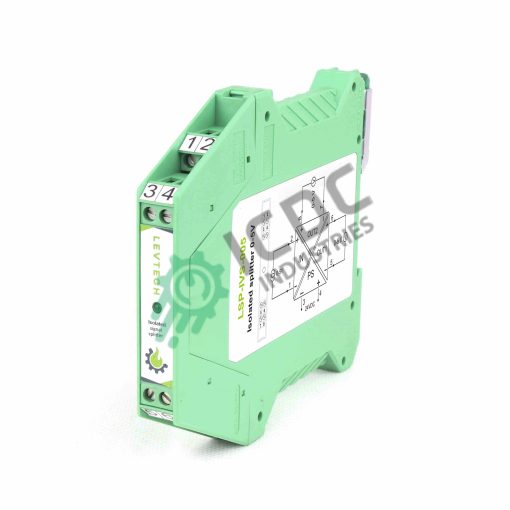

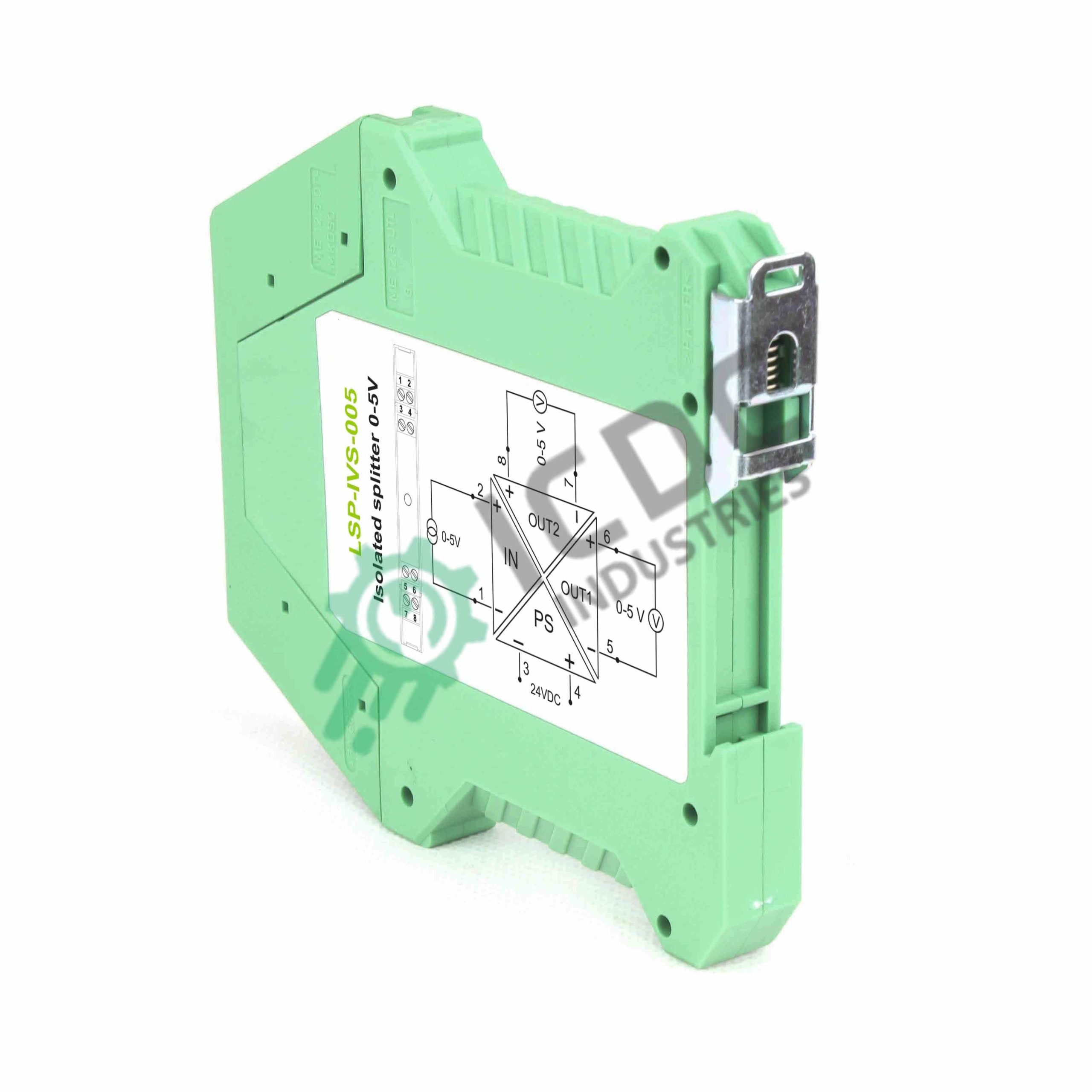

LEVTECH - LSP-IVS-005 - Splitter for Analog Signals - ICDC-036032 - New

LEVTECH – LSP-IVS-005 – Equipment – ICDC-036032 – New
Main Category: Electronics | Sub-Category: Equipment | Status: New Original Components
LEVTECH Part Number: LSP-IVS-005 | ICDC Part Number: ICDC-036032

Description:
Description
The Isolated splitter is usually used in automation systems, where the analog signal of a measurement device has to be connected into two processing units. For example a temperature transmitter 0-5V output is connected to the inputs of this device and the output1 is connected to the PLC, output2 is connected to a display which will show the temperature value. It can be ordered for 0(4)-20mA, 0-10V or 0-5V standard analog signals. It ensures also a 4 way galvanic isolation, which mean that the Input, Output1, Output2 and the power supply is isolated from each other. The galvanic isolation reduces the impact of interference and ground potential differences.

Order Code Input Output1 Output2
LSP-IAS-020 0(4)-20mA 0(4)-20mA 0(4)-20mA
LSP-IVS-010 0-10V 0-10V 0-10V
LSP-IVS-005 0-5V 0-5V 0-5V

Features
– Four way isolated

– 3500VDC isolation

– TS-35 DIN rail mounting

– +/-0.1% accuracy

– Ip40 case

– Screw terminals

– Power LED

– Supply voltage 24VDC

– Made in EU
