TELEMECANIQUE - CAD-32BD - Connector

TELEMECANIQUE – CAD-32BD – Connector

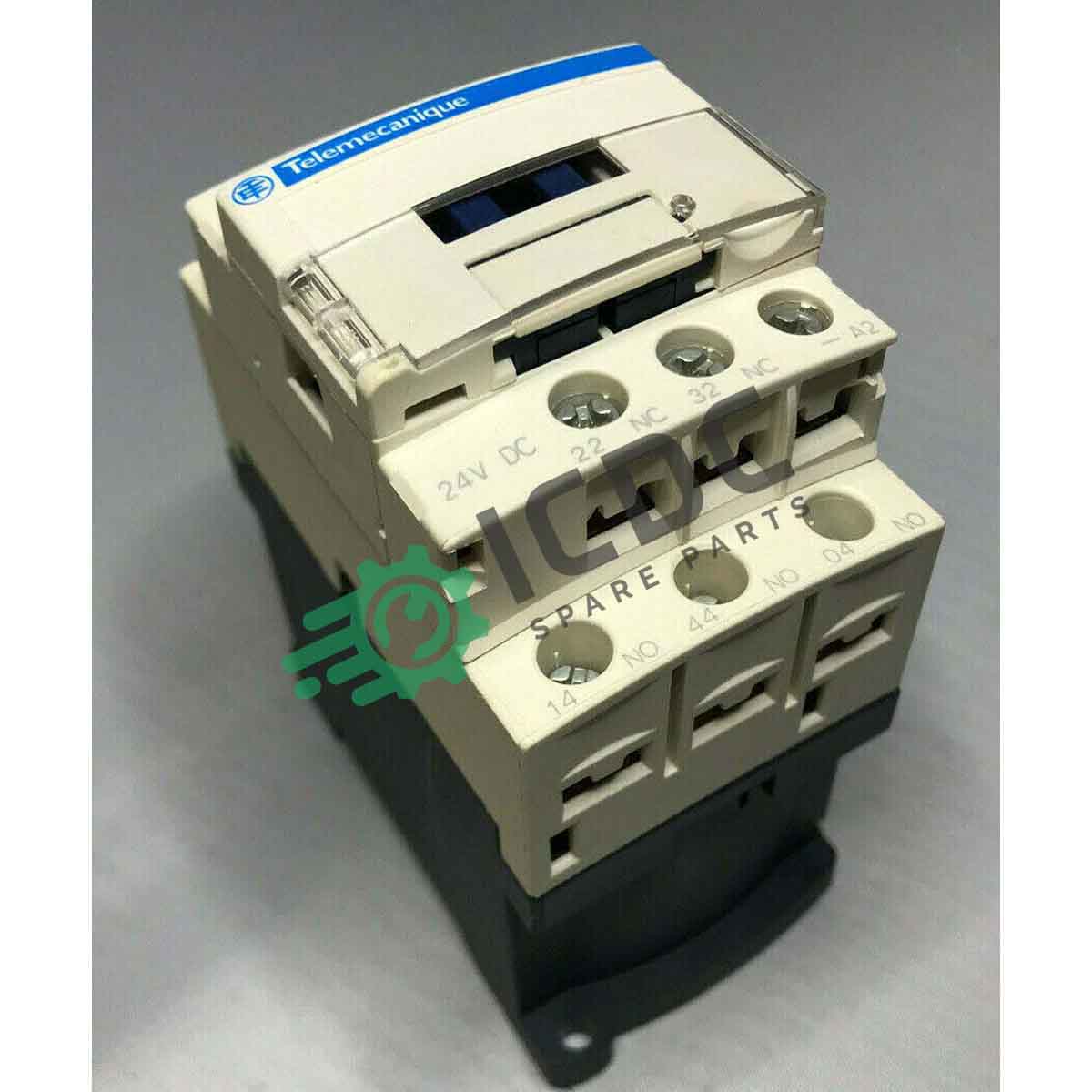

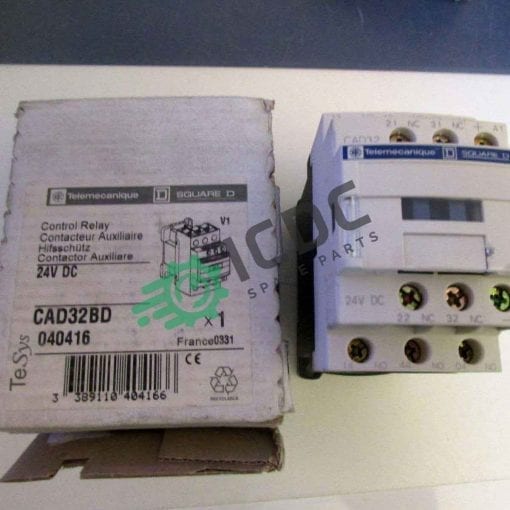

CAD-32BD CONTACTOR

DESCRIPTION:

The CAD32BD from TELEMECANIQUE is a TeSys D control relay. The IEC type industrial control relay for connection by screw clamp terminals. Conforming IEC 60947-5-1, NF C 63-140, VDE 0660, BS 4794, EN 60947-5 standards and UL, CSA certified.
– 3NO + 2NC contact configuration
– DC control circuit
– Control circuit voltage is 24VDC
– Conventional free air thermal current is 10A
– Inrush power is 5.4W
– Rated operational voltage is 690VDC
– Dimension is 99mm x 45mm x 95mm (H x W x D)
– Standard coil

Are you looking for industrial components?

Join us!
Product Family: Electromechanical>Connectors-Contactors
ICDC Part Number: ICDC-000946
SCHNEIDER ELECTRIC>TELEMECANIQUE Part Number: CAD32BD
Status: New Original Components
