SICK - VL180-P430 - Photocell
PHOTOCELL VL180-P430
Lead Time:
Next Day Shipping + DHL Express Transit Time
€ 27,50 per piece, VAT excluded
Out of stock

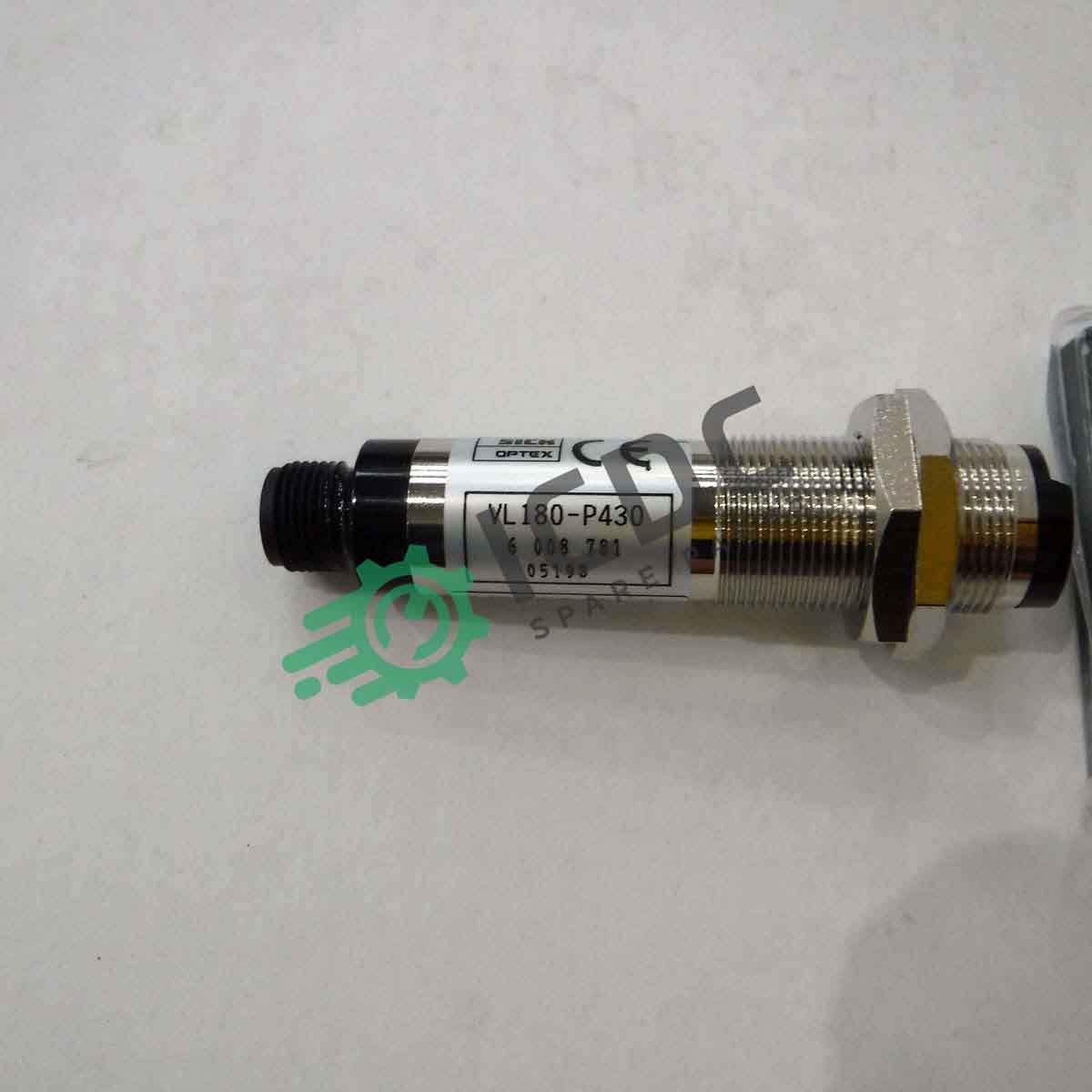

SICK – VL180-P430 – Photocell
Main Category: Electronics | Sub-Category: Photocells | Status: New Original Components
SICK Part Number: VL180P430 | ICDC Part Number: ICDC-010394
Description:
| Sensor/ detection principle | Photoelectric retro-reflective sensor |
| Dimensions (W x H x D) | 18 mm x 18 mm x 69 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 69 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 0.05 m … 3 m 1) |
| Sensing range | 0.05 m … 3 m 1)
2) |
| Type of light | Infrared light |
| Light source | LED 3) |
| Light spot size (distance) | Ø 150 mm (3 m) |
| Wave length | 920 nm |
| Adjustment | Potentiometer, 270° (Sensitivity) |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | ± 5 Vpp 2) |
| Current consumption | 30 3) |
| Switching output | PNP 4) |
| Switching mode | Light/dark switching 4) |
| Switching mode selector | Selectable via L/D control cable |
| Signal voltage PNP HIGH/LOW | Approx. VS – 1.0 V / 0 V |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 1.5 ms 5) |
| Switching frequency | 333 Hz 6) |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | A 7)
C 8) D 9) |
| Protection class | III |
| Weight | 65 g |
| Housing material | Metal, Nickel-plated brass, PBT/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66 |

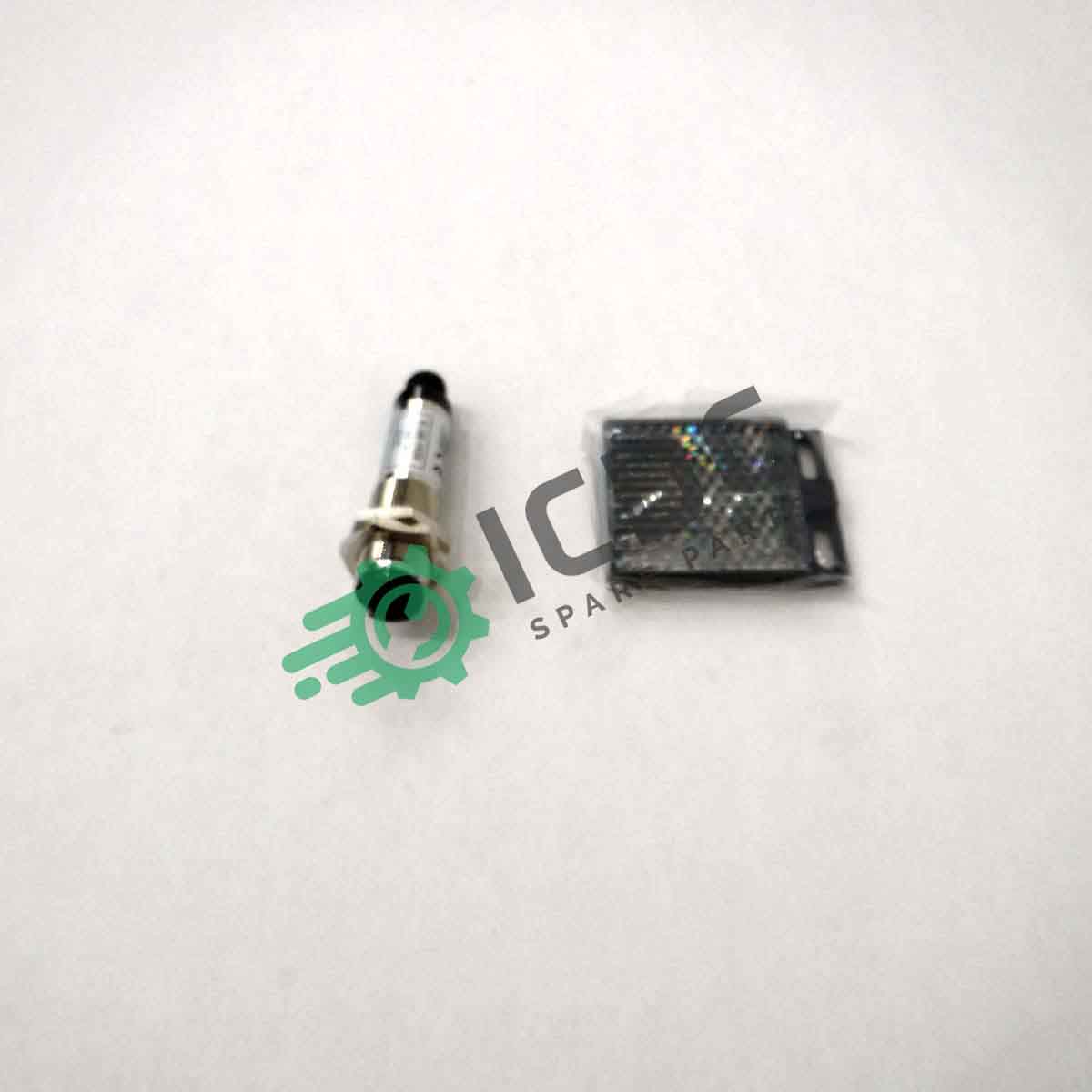

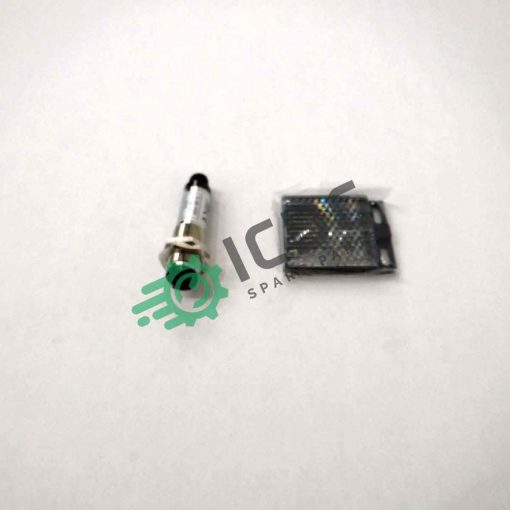

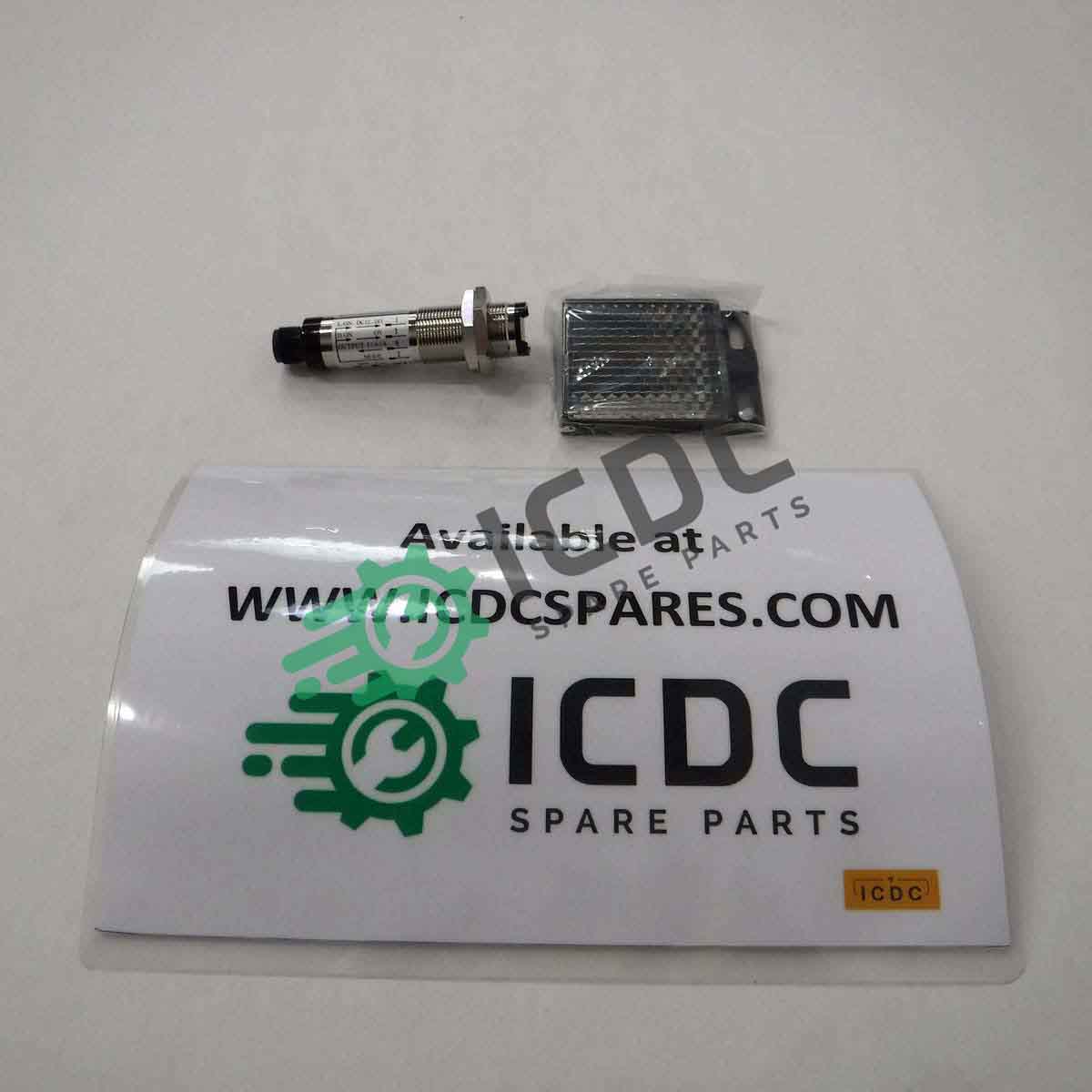

| Items supplied | Reflector P250, fastening nuts (2 x) |
| Ambient operating temperature | –25 °C … +55 °C |
| Ambient storage temperature | –40 °C … +70 °C |
| UL File No. | NRNT2.E128350 & NRNT8.E128350 |
| ECl@ss 5.0 | 27270902 |
| ECl@ss 5.1.4 | 27270902 |
| ECl@ss 6.0 | 27270902 |
| ECl@ss 6.2 | 27270902 |
| ECl@ss 7.0 | 27270902 |
| ECl@ss 8.0 | 27270902 |
| ECl@ss 8.1 | 27270902 |
| ECl@ss 9.0 | 27270902 |
| ECl@ss 10.0 | 27270902 |
| ECl@ss 11.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
