SCHNEIDER ELECTRIC - XB4BVB1 - Gauge

SCHNEIDER ELECTRIC – XB4BVB1 – Gauge

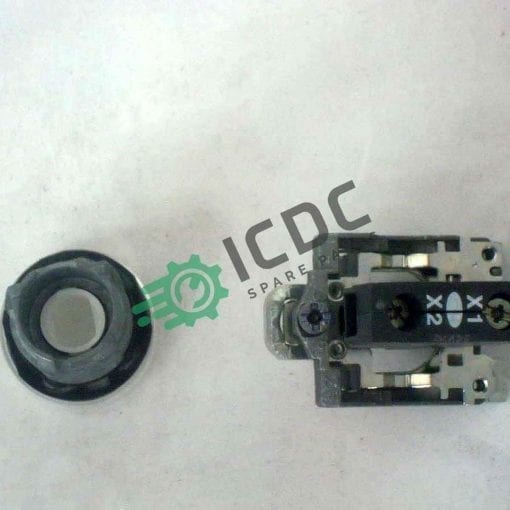

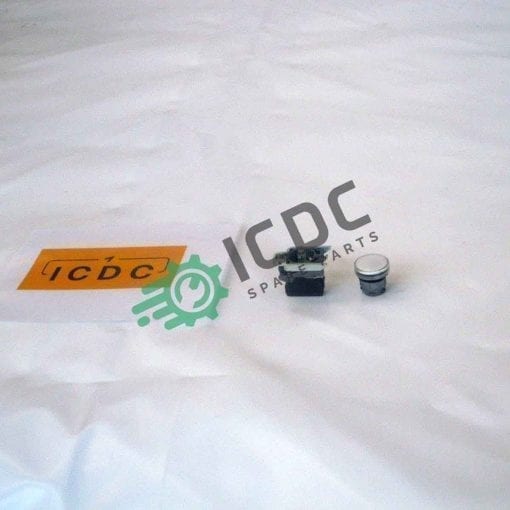

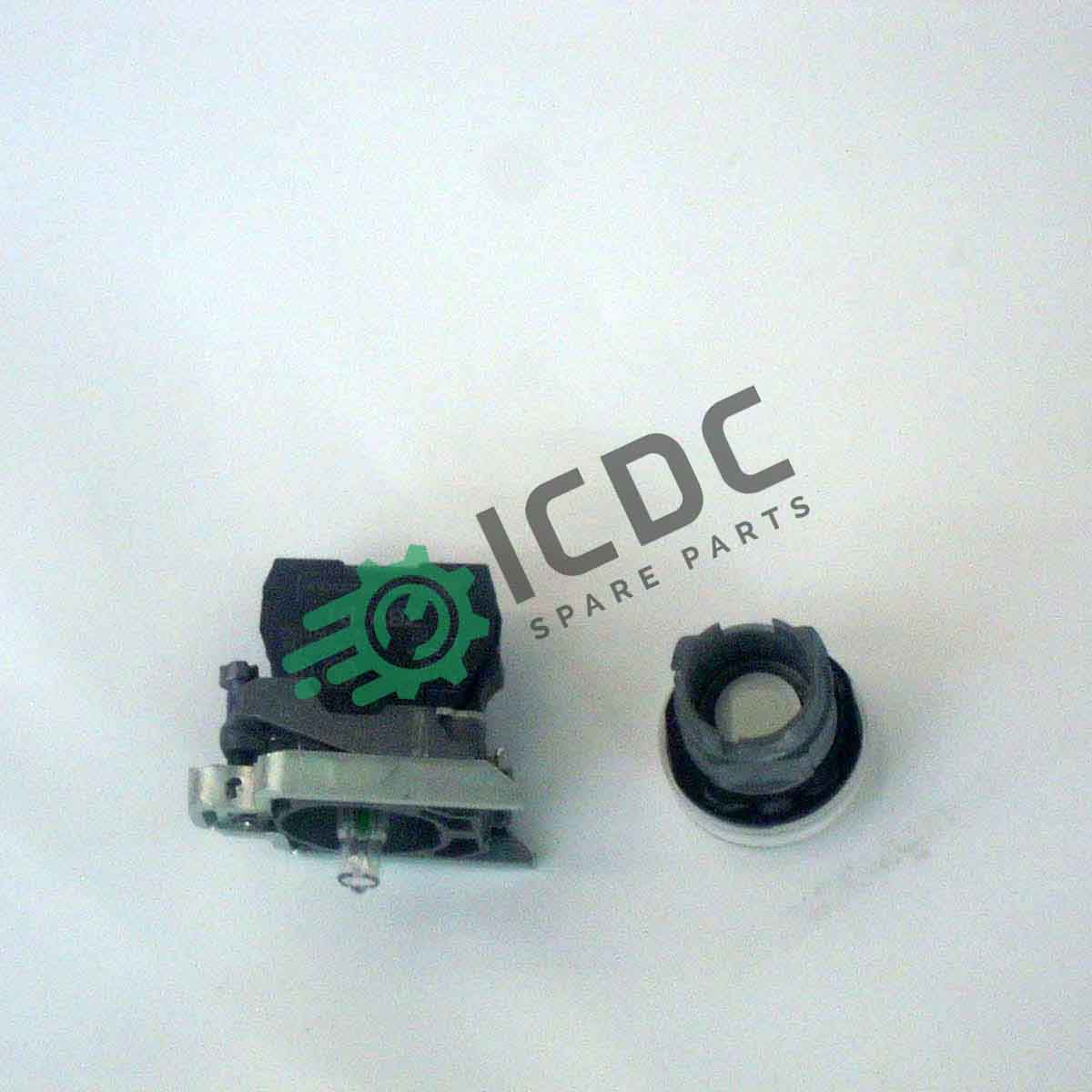

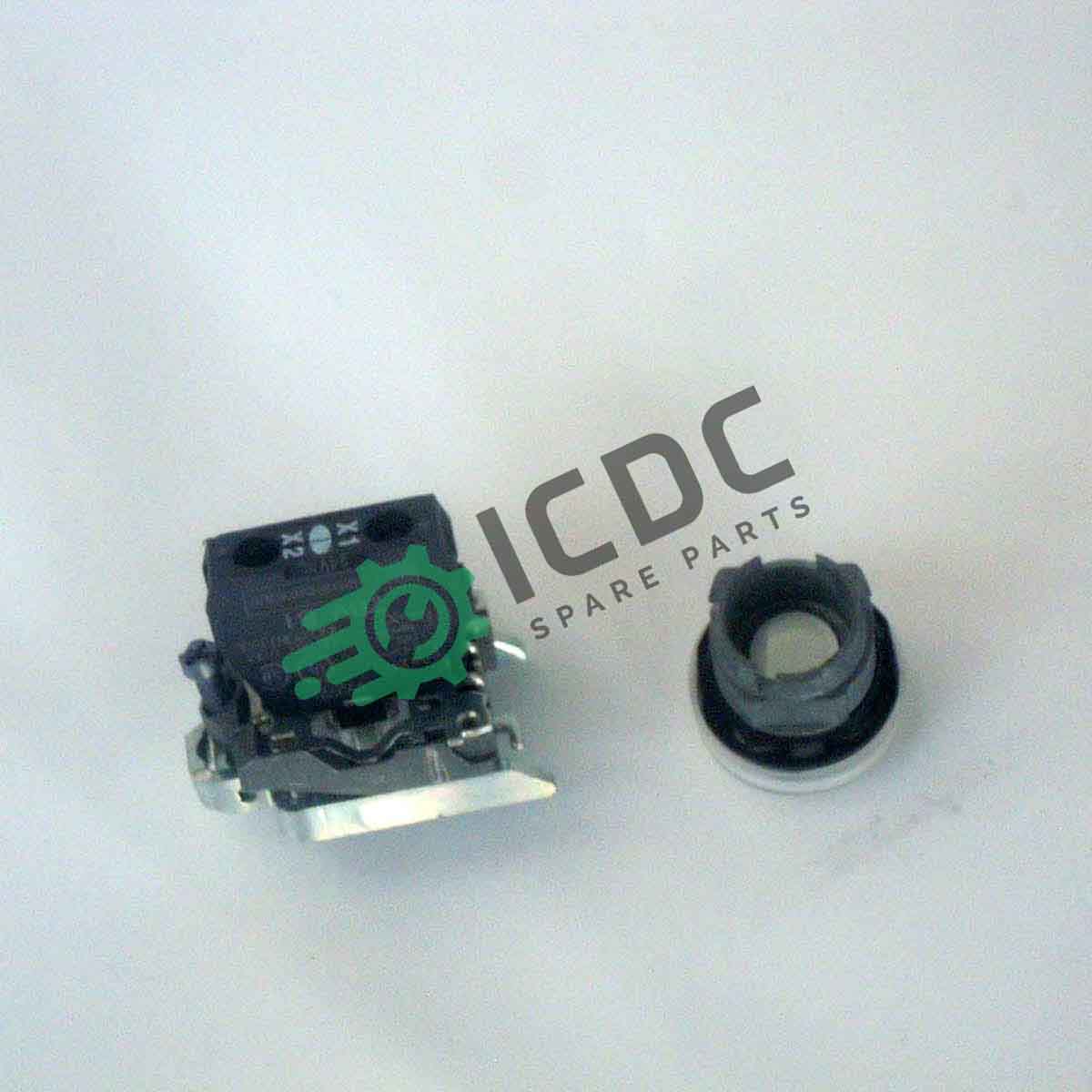

INDICATOR LIGHT XB4BVB1 WHITE LED

The XB4BVB1 from Schneider Electric is a white complete pilot light Ø22 plain lens with integral LED 24V. It meets EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C 4520, UL 508 and CSA C22.2 No 14 standards. It features supply voltage limits from 21.6VAC to 26.4VAC and 19.2VDC to 30VDC, current consumption of 18mA, service life of 100000h at rated voltage and 25°C, resistance to fast transients of 2KV conforming to IEC 61000-4-4, resistance to electromagnetic fields of 10V/m conforming to IEC 61000-4-3, resistance to electrostatic discharge of 6KV on contact (on metal parts) conforming to IEC 61000-4-2, 8KV in free air (in insulating parts) conforming to IEC 61000-4-2 and class B electromagnetic emission conforming to IEC 55011 standards.
Product Family: Lighting>Gauges
ICDC Part Number: ICDC-003003
SCHNEIDER ELECTRIC Part Number: XB4BVB1
Status: New Original Components
