BROADCOM - HCPL-354-000E - ICDC-038445 - Optoisolator

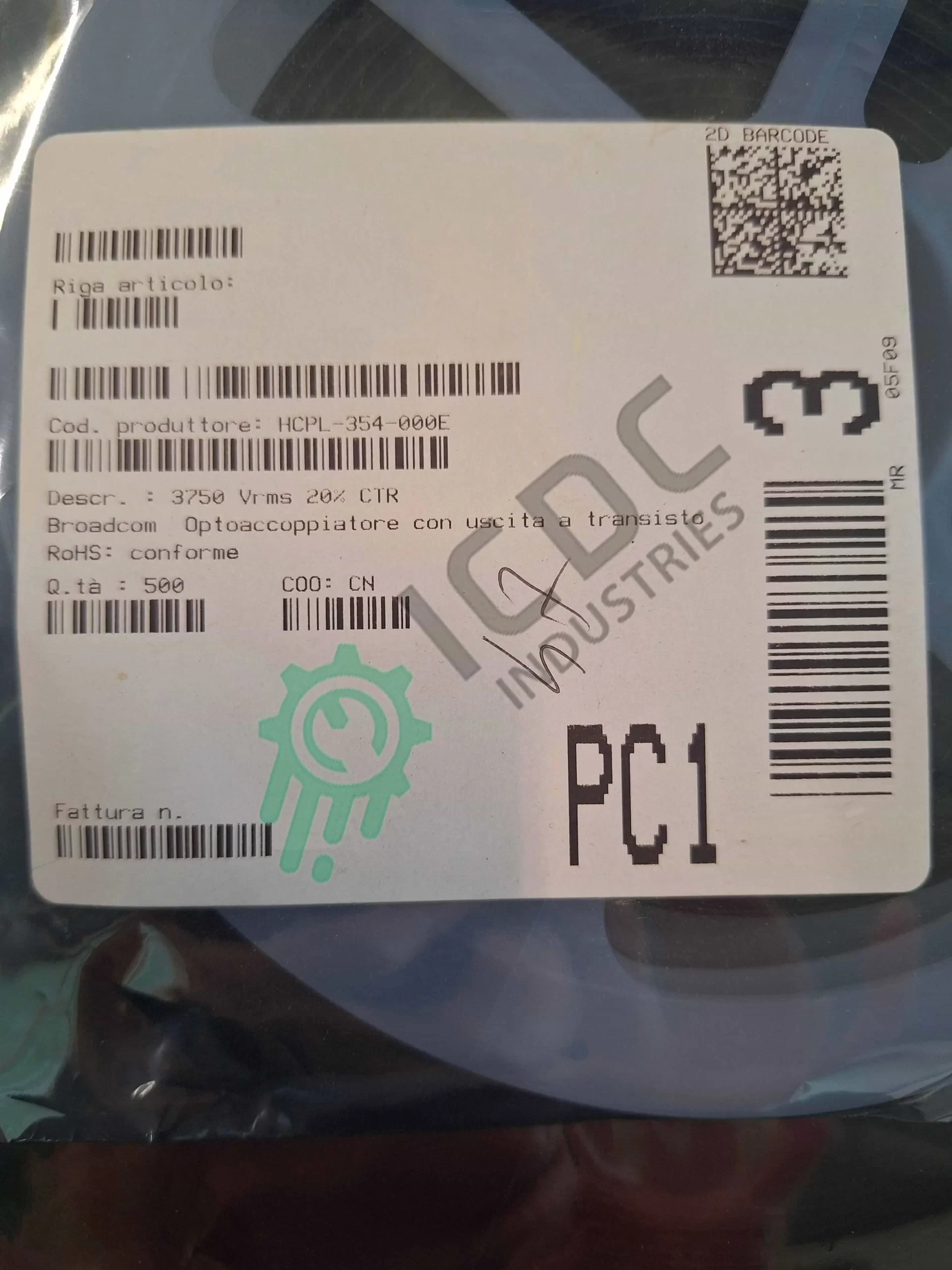

Hcpl-354-000E – Sold complete reel of 500 pieces only, no split.
Lead Time:
Next Working Day to Shipping + DHL Express Transit Time
€ 0,22 per piece, VAT excluded
500 in stock
Hcpl-354-000E – Sold complete reel of 500 pieces only, no split.
Next Working Day to Shipping + DHL Express Transit Time
€ 0,22 per piece, VAT excluded
500 in stock
Main Category: ELECTRONICS | Sub-Category: SEMICONDUCTORS | Status: New Original Components
BROADCOM Part Number: HCPL354000E | ICDC Part Number: ICDC-038445
The Broadcom® HCPL-354-000E contains a phototransistor, optically coupled to two LEDs connected inverse parallel. It can operate directly by AC input current. It is packaged in a 4-pin mini-flat SMD package with a 2.0-mm profile. The small dimension of this product allows significant space savings. The package volume is 30% smaller than that of conventional DIP type. Input-output isolation voltage is 3750 Vrms. Response time, tr, is typically 4 µs and minimum CTR is 20% at input current of ±1 mA.
Features
– AC input response
– Current transfer ratio
(CTR: min. 20% at IF = ± 1 mA, VCE = 5V)
– Isolation voltage between input and output
(Viso = 3,750 Vrms)
– Subminiature type
(The volume is smaller than that of conventional DIP type by as far as 30%)
– Mini-flat package
– 2.0 mm profile
– UL approved
– CSA approved
– IEC/EN 60747-5-5 approved
– Options available: IEC/EN 60747-5-5 approvals (060)
