EL3068 Description:

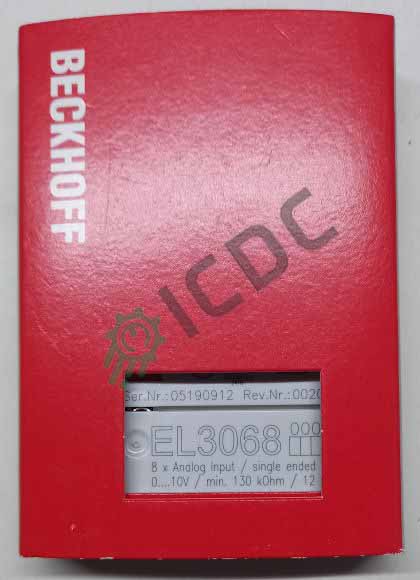

EL3068 | EtherCAT Terminal, 8-channel analog input, voltage, 0…10 V, 12 bit, single-ended
The EL3068 analog input terminal processes signals in the range between 0 and 10 V. The voltage is digitized with a resolution of 12 bits and is transmitted (electrically isolated) to the higher-level automation device. The EL3068 EtherCAT Terminal combines eight channels in one housing. The power contacts are connected through. The 0 V power contact is used as reference ground connection for the inputs. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
Technical data EL3068
Number of inputs 8 (single-ended)
Power supply via the E-bus
Technology single-ended
Signal type single-ended
Signal voltage 0…10 V
Distributed clocks –
Internal resistance > 130 kΩ
Input filter limit frequency 1 kHz
Dielectric strength max. 30 V
Conversion time 1.25 ms default setting, configurable, multiplex
Resolution 12 bit (16 bit presentation incl. sign)
Measuring error < ±0.3 % (relative to full scale value)
Electrical isolation 500 V (E-bus/signal voltage)
Current consumption power contacts –
Current consumption E-bus typ. 130 mA
Bit width in the process image inputs: 32 byte
Special features activatable FIR/IIR filters, limit value monitoring
Weight approx. 60 g
Operating/storage temperature -25…+60 °C/-40…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Pluggable wiring for all ESxxxx terminals
Approvals/markings CE, UL, ATEX
Ex marking II 3 G Ex nA IIC T4 Gc
Technical data
Housing data EL-12-8pin
Design form compact terminal housing with signal LEDs
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section
s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²
Connection cross-section AWG
s*: AWG 28…14,
st*: AWG 28…14,
f*: AWG 26…16
Stripping length 8…9 mm
Current load power contacts Imax: 10 A
*s: solid wire
