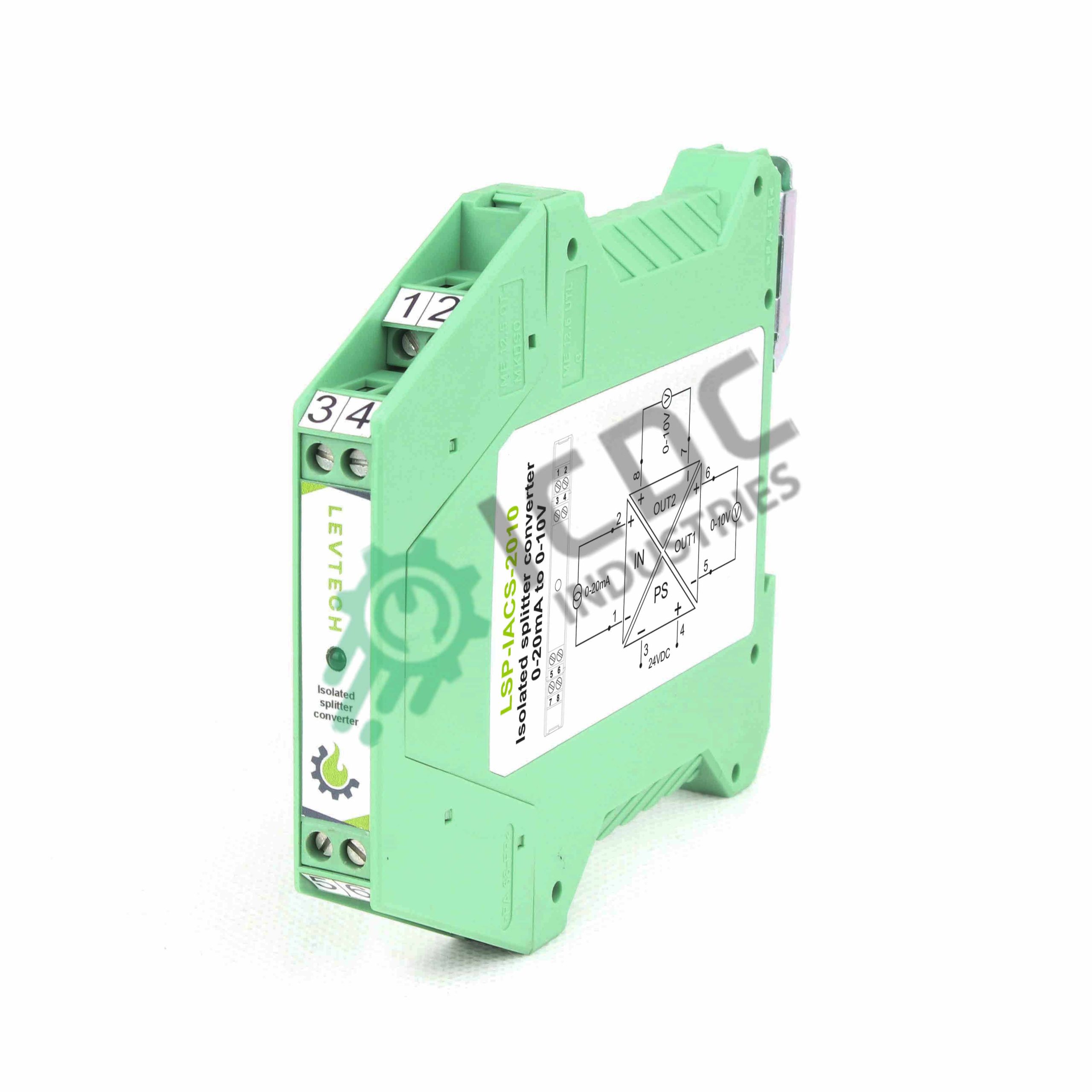

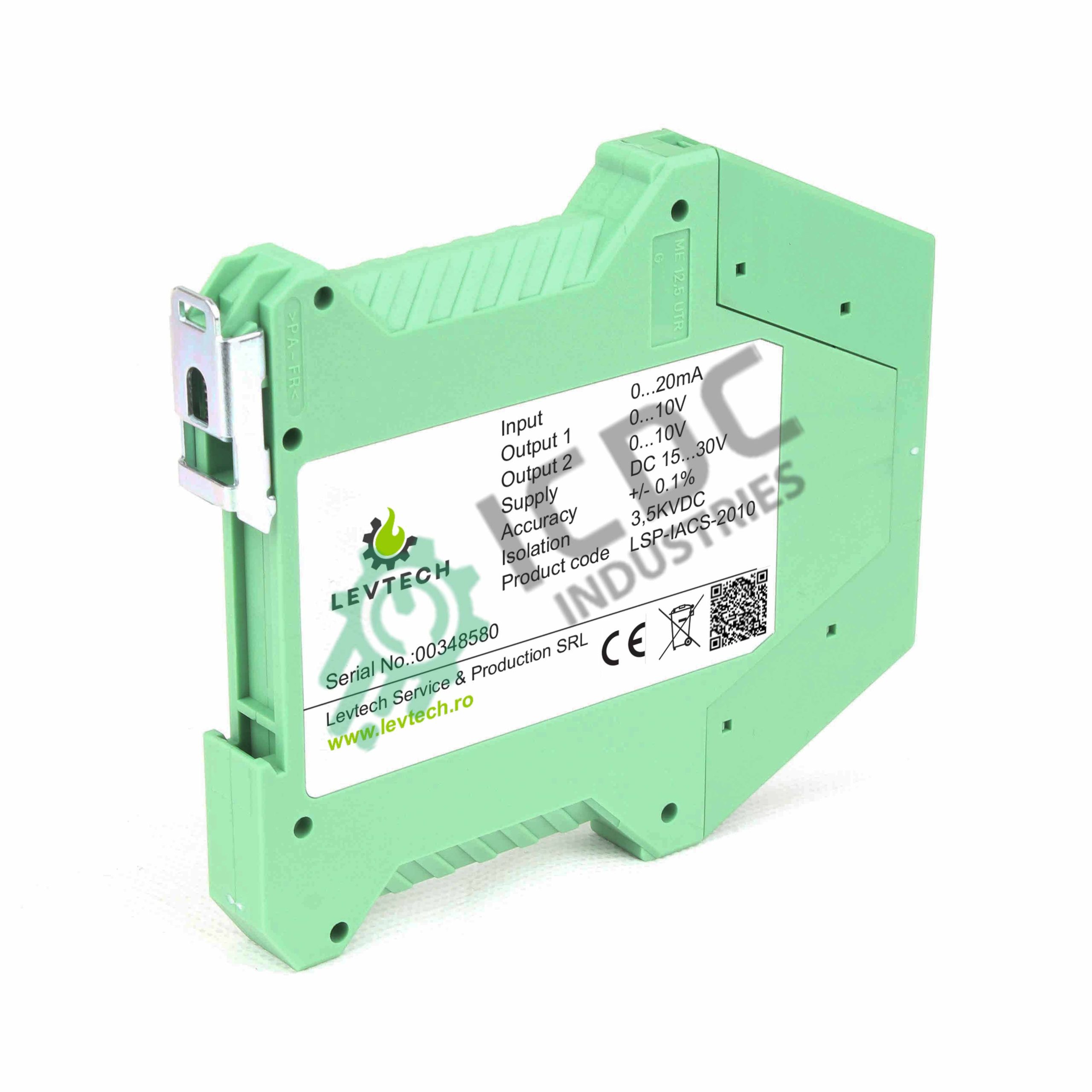

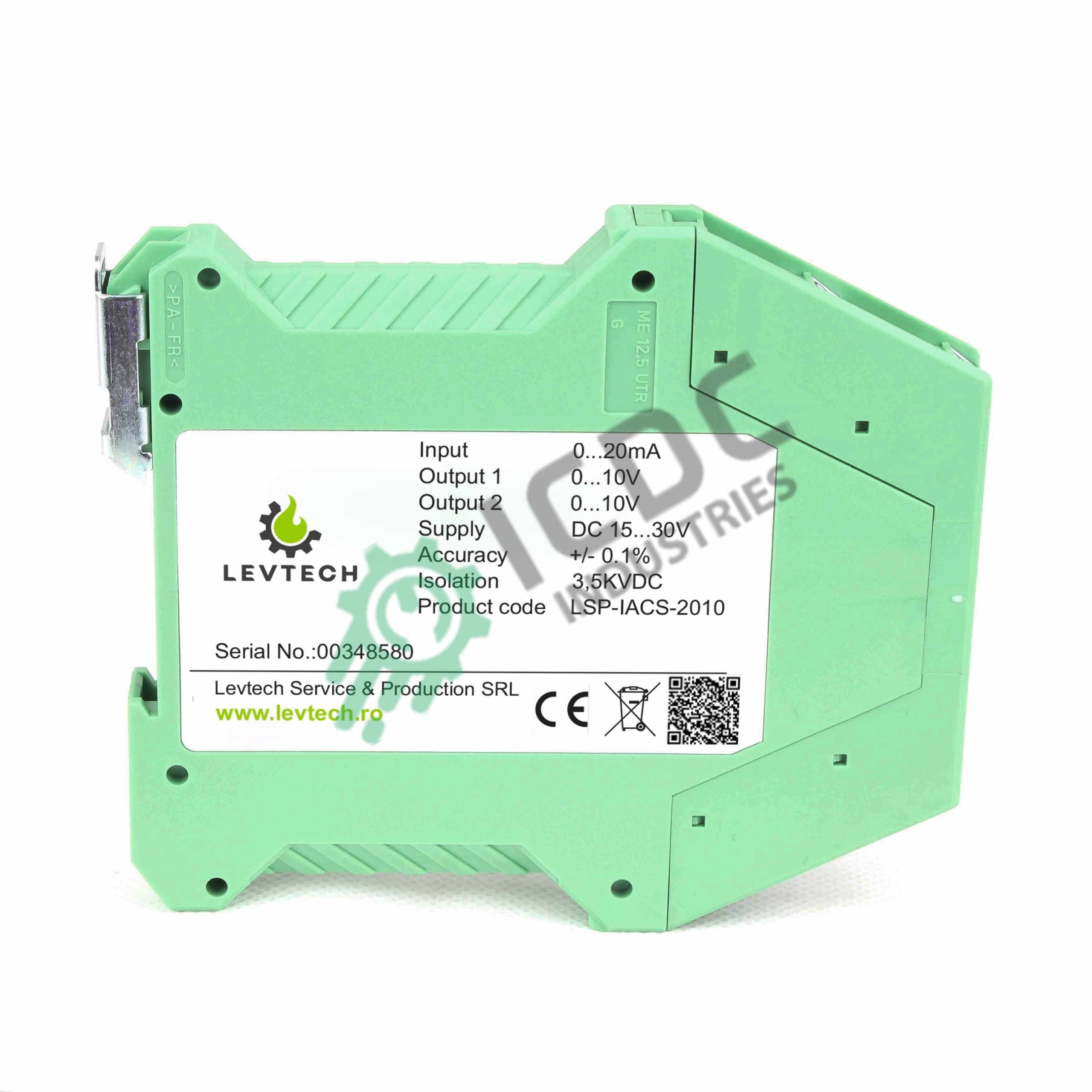

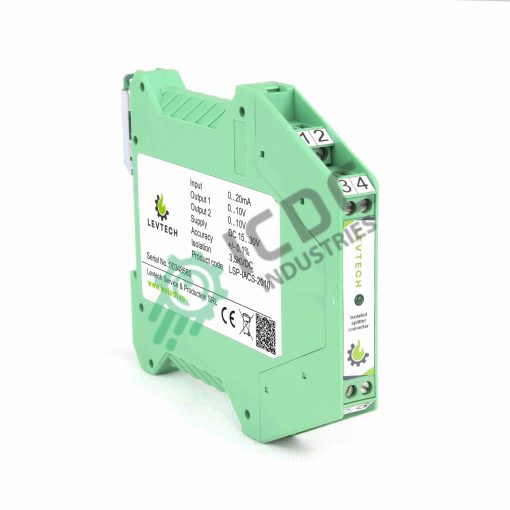

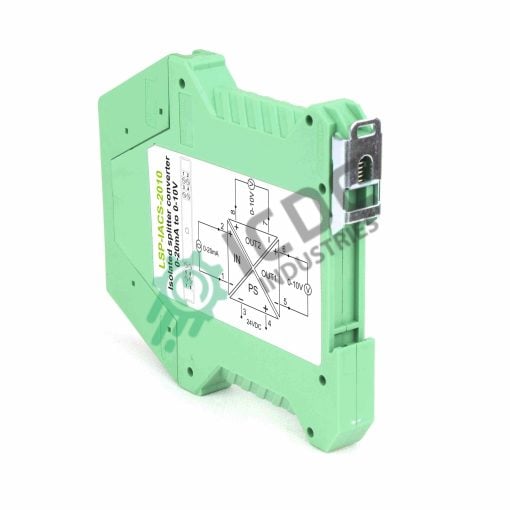

LEVTECH - LSP-IACS-2010 - Signal Converter - ICDC-036021 - New

LEVTECH – LSP-IACS-2010 – Equipment – ICDC-036021 – New

Main Category: Electronics | Sub-Category: Equipment | Status: New Original Components
LEVTECH Part Number: LSP-IACS-2010 | ICDC Part Number: ICDC-036021

Description:

What is the Isolated Signal Converter and Splitter?
The signal converter is used in cases where the measurement device or transmitter analog signal type is not corresponding to the input of the processing unit. For example, you have a conductivity transmitter with 0-20mA output, but you have a Siemens 1200 PLC with only analog 0-10V signal input and a display with also 0-10V input. Using this converter splitter the 0-20mA signal is converted to two identical 0-10V analog signal and you can connect the transmitter in the same time to the PLC and display. The models have voltage inputs/outputs ranging from 0-5V and 0-10V and the current inputs/outputs range from 0-20mA and 4-20mA, providing options for several applications.

Conversion types that can be ordered:

Order Code Input Output1 Output2
LSP-IVCS-1020 0-10V 0-20mA 0-20mA
LSP-IVCS-1042 0-10V 4-20mA 4-20mA
LSP-IVCS-0520 0-5V 0-20mA 0-20mA
LSP-IVCS-0542 0-5V 4-20mA 4-20mA
LSP-IACS-2010 0-20mA 0-10V 0-10V
LSP-IACS-2005 0-20mA 0-5V 0-5V
LSP-IACS-4210 4-20mA 0-10V 0-10V
LSP-IACS-4205 4-20mA 0-5V 0-5V
Features
– Four way isolated

– 3500VDC isolation

– TS-35 DIN rail mounting

– +/-0.1% accuracy

– Ip40 case

– Screw terminals

– Power LED

– Supply voltage 24VDC

– Made in EU

– Factory calibrated
