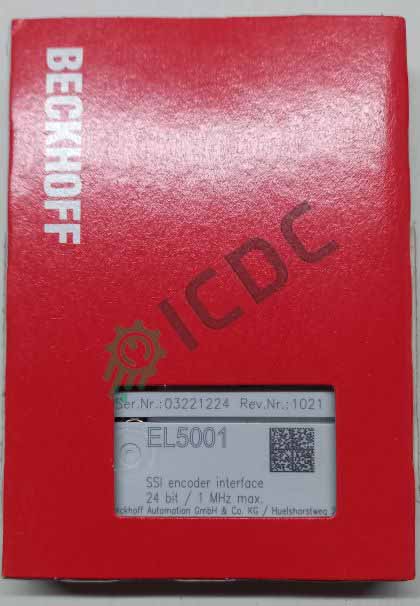

BECKHOFF - EL5001 - Electronic Encoders - ICDC-040728 - New
Technology SSI encoder interface Number of chann … see DESCRIPTION
Lead Time:
2 Working Days to Shipping + DHL Express Transit Time€ 488,00 + IVA 22%, prezzo unitario
18 disponibili
BECKHOFF – EL5001 – Electronic Encoders – ICDC-040728 – New
Main Category: Electronics | Sub-Category: Encoders | Status: New Original Components
BECKHOFF Part Number: EL5001 | ICDC Internal Part Number: ICDC-040728
EL5001 Description:
Technical data EL5001
Technology SSI encoder interface
Number of channels 1
Encoder connection D+, D-, Cl+, Cl-
Encoder operating voltage 24 V DC (generated from the power contacts)
Signal output (pulse) difference signal (RS422)
Signal input (data) difference signal (RS422)
Power supply 24 V via power contacts
Data transfer rates variable up to 1 MHz, 250 kHz default
Serial input variable up to 32 bit, 24 bit default
Data direction read
Current consumption power contacts typ. 20 mA + load
Current consumption E-bus typ. 120 mA
Distributed clocks yes
Special features adjustable baud rate, coding and data length, power fail bit activatable
Weight approx. 55 g
Electrical isolation 500 V (E-bus/field potential)
Operating/storage temperature -25…+60 °C/-40…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos. IP20/variable
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings CE, UL, ATEX
Pluggable wiring for all ESxxxx terminals
Ex marking II 3 G Ex nA IIC T4 Gc
Housing data EL-12-8pin
Design form compact terminal housing with signal LEDs
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section ns*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²
Connection cross-section AWG
s*: AWG 28…14,
st*: AWG 28…14,
f*: AWG 26…16
Stripping length 8…9 mm
Current load power contacts Imax: 10 An
Contact us to discover EL5001. ICDCSPARES.COM offers new or overhauled original components, ready in stock to be shipped via DHL Express! Call us!
Check our Electronics section to discover more about ICDC catalog: a large selection of industrial spare parts including Fuses, Electric Motors, Switches and Encoders.
Are you looking for industrial Encoders? ICDC offers online a wide selection of Encoders of the most important OEMs like EATON, ABB and DANFOSS, besides BECKHOFF.
ICDC, Your Industrial One Stop Shop for Components!
